Quick Details

  • Type: Flashlights
  • Light Source: LED
  • LED Light Source: ultraviolet
  • Flashlight Type: UV Flashlight
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: HTLD
  • Model Number: uv led light
  • Battery Type: controller
  • Usage: Industrial
  • Power Source: alternating current
  • Lighting Period (h): >12
  • Certification: CE, RoHS
  • IP Rating: IP33
  • Lamp Body Material: Aluminum
  • Warranty(Year): 1
  • wave length: 365nm~405nm

Packaging & Delivery

Packaging Details standard export carton
1set/carton
Delivery Time 10days after payment

HTLD factory price high power uv led light for electronic components adhesion

Product Description

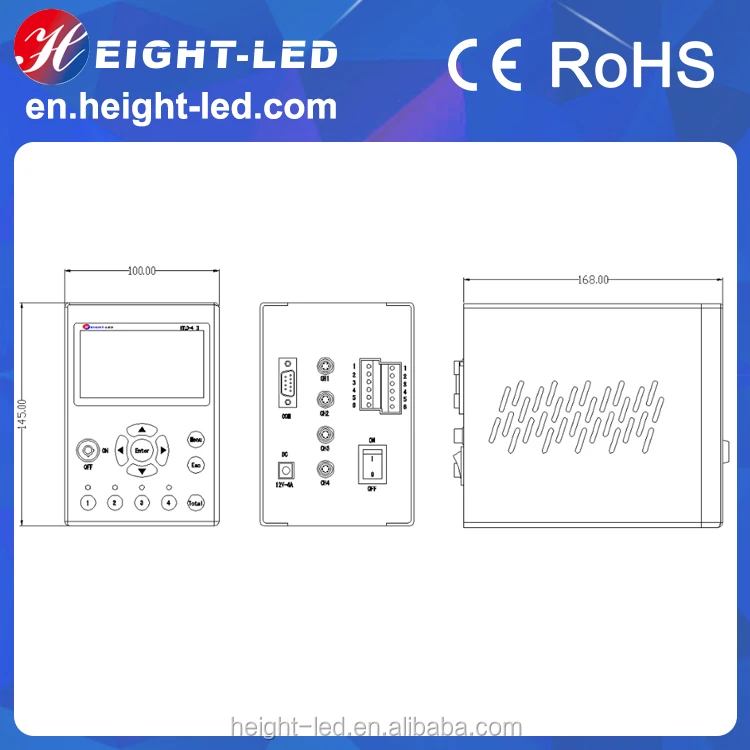

Controller technical specifications
Type         HTLD-4Ⅱ
UV radiation heads        Four(4 LED)
The size of controller   L185*W100*H125mm
Terminal I/OInput   Pedal switch & serial RS-232
   communication signals
Outputserial RS-232 communication signals
Cooling method of controllerSemiconductor cooling
Power supply voltageAC100~240V±10%(50/60HZ)
Power consumed20W
Ambient temperature and
humidity
Ambient temperature:-10℃—50℃
Relative humidity:25%—85%RH
Dimming/Exposure controlDigital Debugging,Manual exposure
control,Foot control or timing control
(0.1~9999S)
Setting operationUsing the operating switch is set,Power key parameter switch,RS-232
External ControlExternal inputEnter irradiation alone
Irradiation stop input,
Interlocking,All lights
illuminated input,Query
switch
External output

READY signal,Error
signal,Warning Output,Busy output(Various skinhead),

+5VOutput (indicator used)

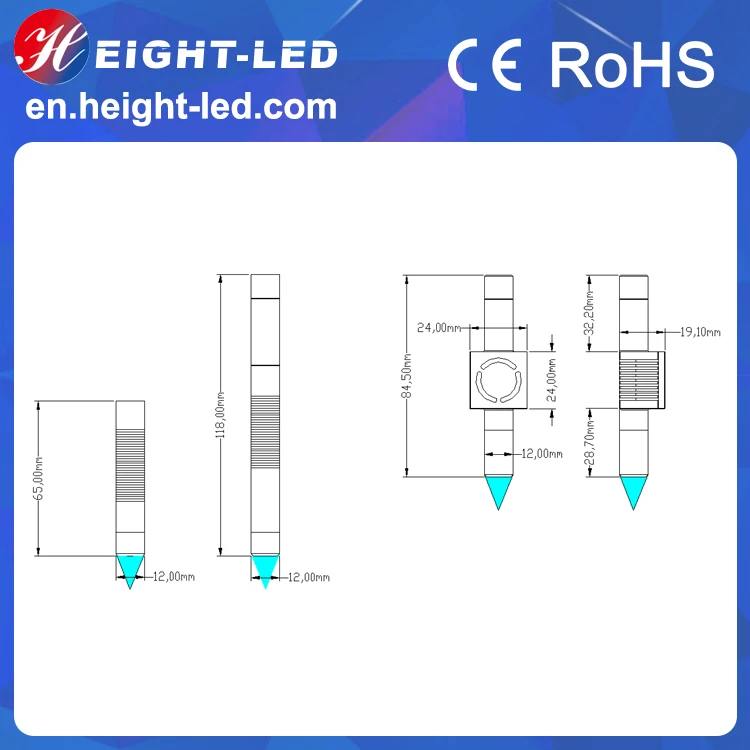

UV-LED head specification
365nmSpot diameter3mm4mm6mm8mm10mm
Light power130007300325018001200
density(m w/cm2)
Irradiation distance10mm12mm20mm25mm30mm
395nmSpot diameter3mm4mm6mm8mm10mm
Light power150008400375021001400
density(m w/cm2)
Irradiation distance10mm12mm20mm25mm30mm
405nmSpot diameter3mm4mm6mm8mm10mm
Light power150008400375021001400
density(m w/cm2)
Irradiation distance10mm12mm20mm25mm30mm
Cable length2m, 5m optional
Source3B rating  LED Products
Light presumed life25,000 hours (Bald internal LED temperature at 50 ° C)
Temperature / humidity range-10 ~ + 50 ° C, 25 ~ 85% RH (25 ° C under non-condensing)
CoolingFan cooling, natural cooling
