Quick Details

  • Type: UV LED
  • Model Number: HTLD-200x20-395
  • Chip Material: GaAs
  • Emitting Color: Purple
  • Luminous Intensity: 2W/cm2 ~ 8w /cm2
  • Luminous Flux(lm): 30-40lm
  • Optical Attenuation(%): 10
  • Power: 0.06W
  • Power Dissipation: 10
  • Viewing Angle(°): 120
  • Color Rendering Index(Ra): 100
  • Color Temperature: 365 - 405 Nm
  • Operating Temperature(℃): 20 - 65
  • Storage Temperature(℃): 20 - 65
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: htld
  • Certification: CE, RoHS
  • Wavelength: 365nm/375nm/385nm/395nm/405nm/415nm
  • cooling method: air cooling or water cooling
  • Color: White an black

Packaging & Delivery

Packaging Details standard export cost
1set/ carton
Delivery Time One month after receipt of payment

high intensity new products uv led lighting 395nm / uv led from China supplier

Product Description
 1: Controller Description:
Product model

         XYUV-4-

Channel

         One

The size of controller

L380*W285*H100mm

Terminal I/O

Input

   Pedal switch&serial RS-232 communication signal

Output

serial RS-232 communication signals

Cooling method of controller

Air cooling

Power supply voltage

AC100~240V±10%(50/60HZ)

Power consumed

20W

Ambient temperature and

humidity

Ambient temperature:-40—80

Relative humidity:25%—85%RH



Dimming/Exposure control

Didital Debugging,mannal exposure control,Foot control or timingcontrol(0.1~999.9S)

Setting operation

Using the operating switch is set,Power key parameter switch,RS-232









External Control





External input

Enter irradiation alone

Irradiation stop input,

Interlocking,All lights

illuminated input,Query

switch





External output

READY signal,Error

signal,Warning Output,Busy output(Various skinhead), +5V Output

2:UV-LED Irradiation head Description:



ModelHTLD-S256-100X100-395
Setting specification700mA   constant current
Electric power1500W
Cooling methodWater cooling / Air cooling
Control methodXYUV-4II controller, Channel alone control
Curing arealength:100mm;width:100mm
 Irradiate distance10-15mm
UV LED curing headwavelength365nm,395nm , 405nm
Peak irradiance12W/CM2
uniformity+_ 5~8%
gradeNO.1,3B product

More different uv led curing system can be customized by your requirement.

And more high –power products waiting for your attention





Product Advantages

Product Advantages:

1.Extra-long life: 25000h~30000h

2.Energy saving: save 80%  electrical energy than  Mercury lamp

3.UV output adjustment: From 1% to 100%

4.Multiple control modes :  Constant current, pedal control, intelligent optical and manual modes

5: Photoelectric induction, instant on/off, no preheating required.

6: Low energy consumption, just 20% of the ordinary uv lamp

7: No mercury, No Ozone, eco-friendly

8: Cold light source, low temperature

9: Stable output, high uniformity.



why choose HTLD
1:  Height LED have real factory, professional engineers with over 7 years experience and skilled workers
2:  We have over 12 years experience in LED UV curing industry
3:  We has established good reputation and high quality position and it supplies high quality UV LED lights.
4:  We have professional R&D team and one year free warranty
5:  7*24 hours Technical support
6:  Abundant Experience of Export



Product Application

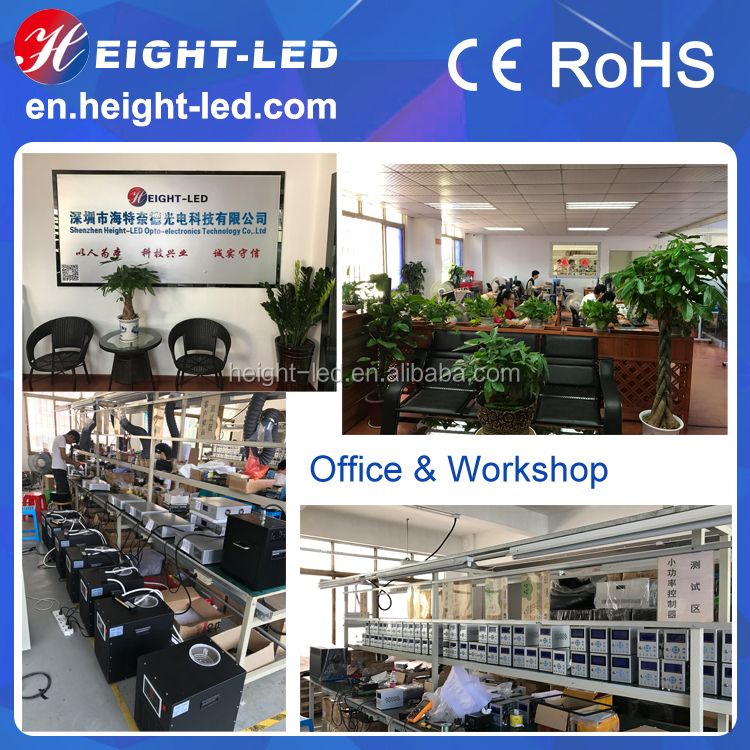

Company Information

Shenzhen Height-LED Opto-electronics Technology Co., Ltd located in Shenzhen, Guangdong, China. Starting in 2007, Height-LED engaged in UV-LED curing UV ink, UV adhesive UV paint, UV varnish and other UV sensitive materials. Our team has more than 10 years combined experience in UV curing systems and can meet the requirements of each client.
