Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: HTLD
  • Model Number: XYUV-4II
  • Rated Power: 4W-100W
  • Voltage: 220V
  • wavelenght: 365nm~405nm
  • cooling method: air cooling or water cooling
  • Color: Ultravoilet

Packaging & Delivery

Packaging Details standard export carton
1 set/ carton
Delivery Time 15 days after payment

powerful uv led curing system/units led uv curing lamps for silk screen printing machine



Intelligent Controller Specification:

Model

         XYUV-4Ⅱ

Channel

            One

The size of controller

   L390*W290*H90mm

Terminal I/O

Input

   Pedal switch & serial RS-232 communication signals

Output

serial RS-232 communication signals

Cooling method of controller

Air cooling

Power supply voltage

AC100~240V±10%(50/60HZ)

Operation mode

Touch Panel

 Dimming/Exposure control

Digital Debugging,Manual exposure control,pedal control or timing control (0.1~9999S)

Setting operation

Using the operating switch is set,Power key parameter switch,RS-232

Irradiation Specification:
Modelwavelengthoptic powercuring areacooling methodirradiation distance
HTLD-S132-100X30395nm12w/cm230x100mmwater cooling10-20mm

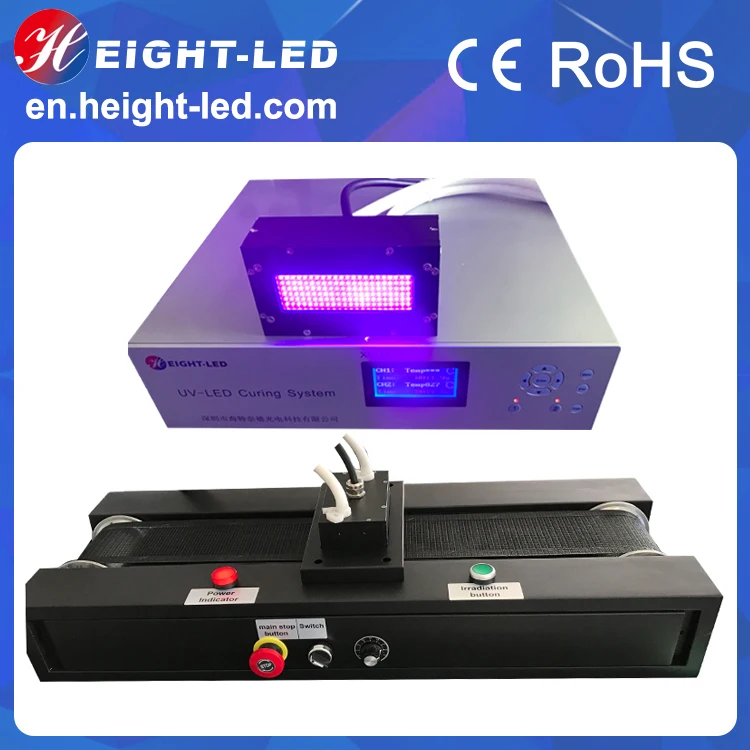

Conveyor belt is 100mm belt width and 1000mm length, the speed is 0-50m/min adjustable.

Do not meet your requirements?

DON'T WORRY! Any wavelengths(365nm,385nm, 395nm, 405nm), sizes and power intensity can be customized, and more high-power UV-LED can meet your requirements.

Product Application

HTLD-S132-30x100 is a high quality UV LED area light source curing system, the system includes the controller, UV LED irradiation head and water chiller. It with imported high-intensity UV LED integrated UV spectral wavelength of 365nm, 385nm, 395nm, 405nm, the effective curing area of 30x100mm, support for external signal input and trigger, can be equipped with semi-automatic or fully automated production line and printing . Air cooled model is available.

Product Advantages

Replace the mercury lamp!



1.Extra-long life: 25000h~30000h
2.Energy saving: save 80%  electrical energy than  Mercury lamp
3.UV output adjustment: From 1% to 100%
4.Multiple control modes :  Constant current, pedal control, intelligent optical and manual modes
5: Photoelectric induction, instant on/off, no preheating required.
6: Low energy consumption, just 20% of the ordinary uv lamp
7: No mercury, No deep UV, No Ozone, eco-friendly
8: Cold light source, low temperature
9: Stable output, high uniformity.
Company Information

Shenzhen Height-LED Opto-electronics Technology Co., Ltd located in Shenzhen, Guangdong, China. Starting in 2007, Height-LED engaged in UV-LED curing UV ink, UV adhesive UV paint, UV varnish and other UV sensitive materials. Our team has more than 10 years combined experience in UV curing systems and can meet the requirements of each client.



FAQ
FAQ

Q1: Why choose HTLD UV LED curing system?

A:The team has over 10 years combined experience in UV LED curing industry and can meet the requirements of each client.

Q2: What's the application of HTLD UV LED curing system ?

A:HTLD UV LED curing system can be used for curing UV glue, UV ink, UV adhesive, UV paint, UV varnish and other UV sensitive materials.

Q3: What is the major advantages of UV LED curing system’s than other UV curing system?

A:Extra-long life, energy saving and environment friendly.

Q4: Which wavelength do I need?

A:It depends on your  UV sensitive materials.

Q5: What's the emitting window do I need?

A:It depends on your product’s size that need to be cure.

Q6: What's the Peak Irradiance do I need?

A:It depends on your UV sensitive materials and your Production efficiency.

Q7: The common  emitting window and  Peak Irradiance can not meet my requirements?

A:Do not worry! Any sizes of emitting window and Peak Irradiance can be customized .

Q8: Where is your company located?

A: 2/F, Towel B, Sanhe international science and technology Building, Da Lang Road,Long Hua District, ShenZhen, Guang Dong Province, China.

Q9: I do not know how to choose a set of uv led curing system.

A: Please click here.
