Quick Details

  • Condition: New
  • Type: uv curing machine
  • Automatic Grade: Semi-Automatic
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: HTLD
  • Model Number: HTCS-I
  • Voltage: 220V
  • Power(W): 1200w
  • Dimension(L*W*H): 1500x580x1280mm
  • Weight: 60kg
  • Certification: CE RoHs
  • Warranty: 1 Year
  • After-sales Service Provided: No overseas service provided
  • Effective irradiated area: 300mm*200mm
  • UV lamp power density: 800mw/cm2
  • Belt Width: 30mm
  • cooling method: air cooling or water cooling

Packaging & Delivery

Packaging Details standard export carton or wooden case according to customer's request.
Delivery Time 20 days after payment

Customized uv led light curing machine with conveyor

Product Specifications

Technical Data of the uv led light head
Wavelength(±5nm)    365nm /385nm/395nm/405nm
Curing area300x200mm / other sizes available
Electronic power1100w
Input voltage220VAC 50Hz / 60HZ
Cooling method
Air cooling
Life  >10000 H
Conveyor speed 100-400mm adjustable
Irradiation distance10-100mm adjustable
Optic power800mw/cm2  (10mm irradiation distance)
Recommend irradiation distance10-100mm

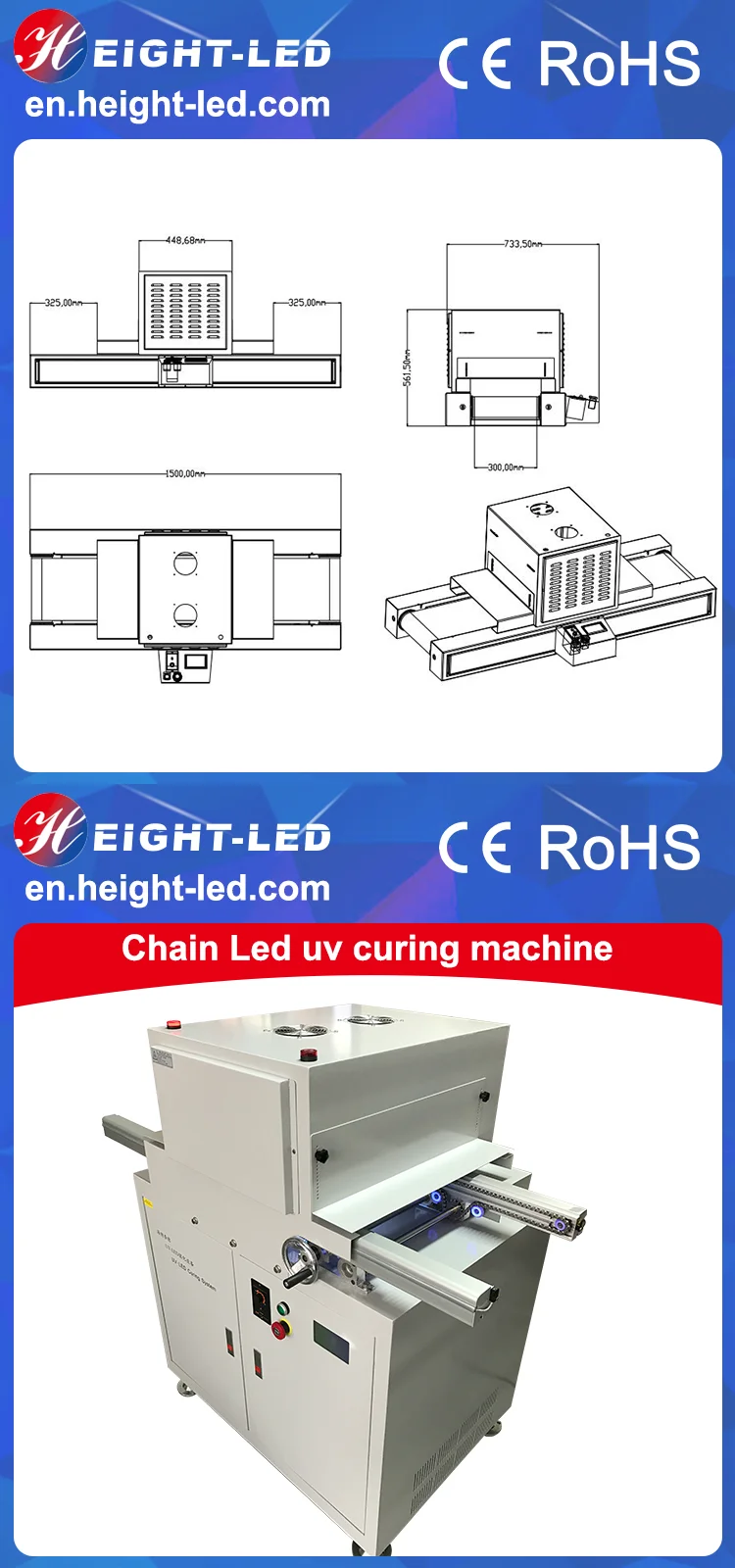

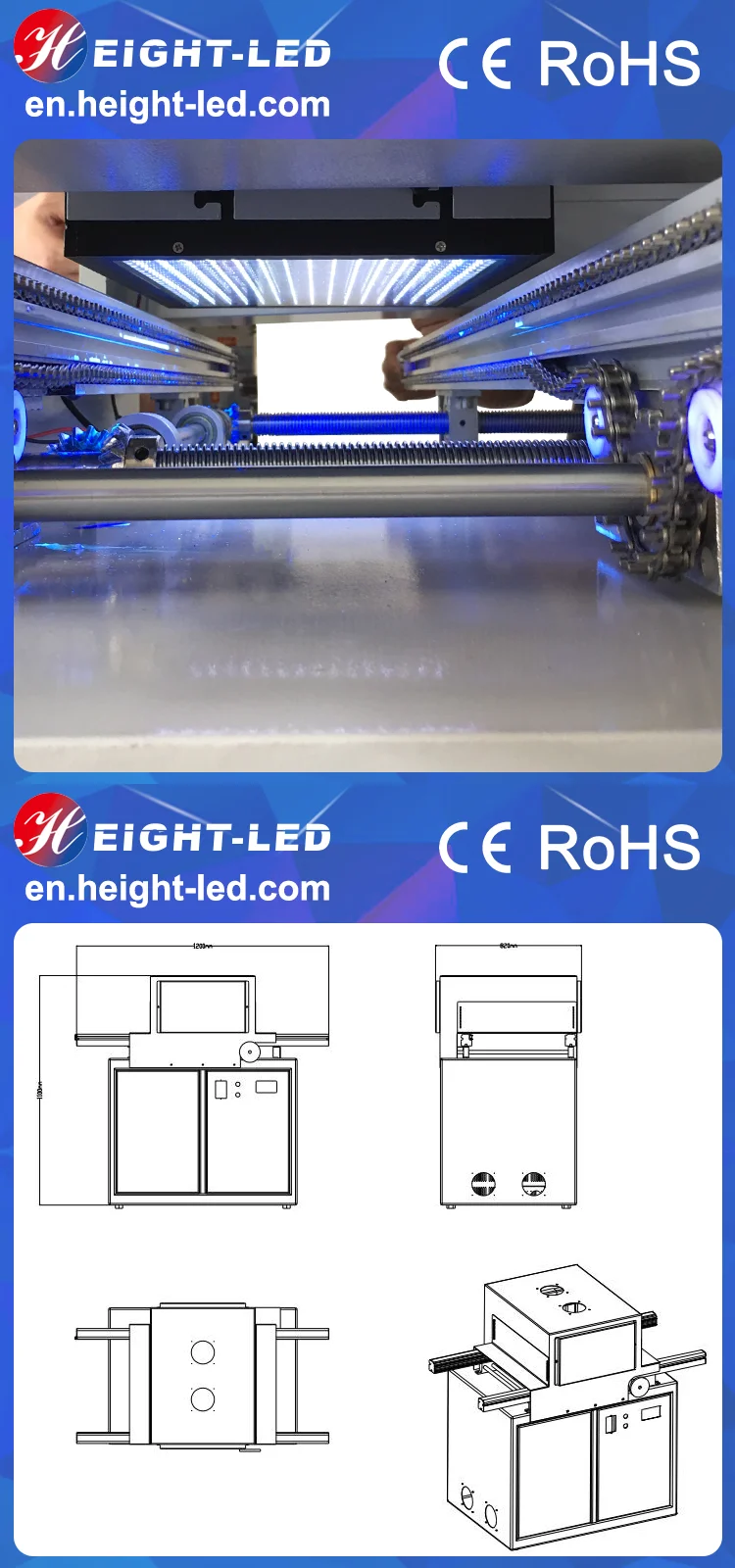

Product Detail Photo

Product feature:
1. Instant ON/ OFF, NO preating required.
2. Adjustable curing distance, UV output intensity and conveyor speed
3. Energy saving and environmental protection
4. infrared sensor to stop, protect your products
5. No infrared radiation, cold light source, suitable for all types of heat-sensitive material curing.

6. Chain conveyor belt with adjustable width.



Main Application:

PCB/PCBA Conformal Coating curing

SMT component protection and reinforcement

Medical instrument uv glue curing



Control system features:

1: Panel display, touch operation, real-time monitoring of the head of the working state

2: Intensity adjustable from 0-100%

3: Temperature monitoring

4: Infrared sensor control, work mode selection

5: Whole machine size: L1200*W820*1100mm



Our Partner

FAQ

Q1: Why choose HTLD UV LED curing system?

A:The team has over 10 years combined experience in UV LED curing industry and can meet the requirements of each client.

Q2: What's the application of HTLD UV LED curing system ?

A:HTLD UV LED curing system can be used for curing UV glue, UV ink, UV adhesive, UV paint, UV varnish and other UV sensitive materials.

Q3: What is the major advantages of UV LED curing system’s than other UV curing system?

A:Extra-long life, energy saving and environment friendly.

Q4: Which wavelength do I need?

A:It depends on your  UV sensitive materials.

Q5: What's the emitting window do I need?

A:It depends on your product’s size that need to be cure.

Q6: What's the Peak Irradiance do I need?

A:It depends on your UV sensitive materials and your Production efficiency.

Q7: The common  emitting window and  Peak Irradiance can not meet my requirements?

A:Do not worry! Any sizes of emitting window and Peak Irradiance can be customized .

Q8: Where is your company located?

A: 2/F, Towel B, Sanhe international science and technology Building, Da Lang Road,Long Hua District, ShenZhen, Guang Dong Province, China.

Q9: I do not know how to choose a set of uv led curing system.

A: Please click here
